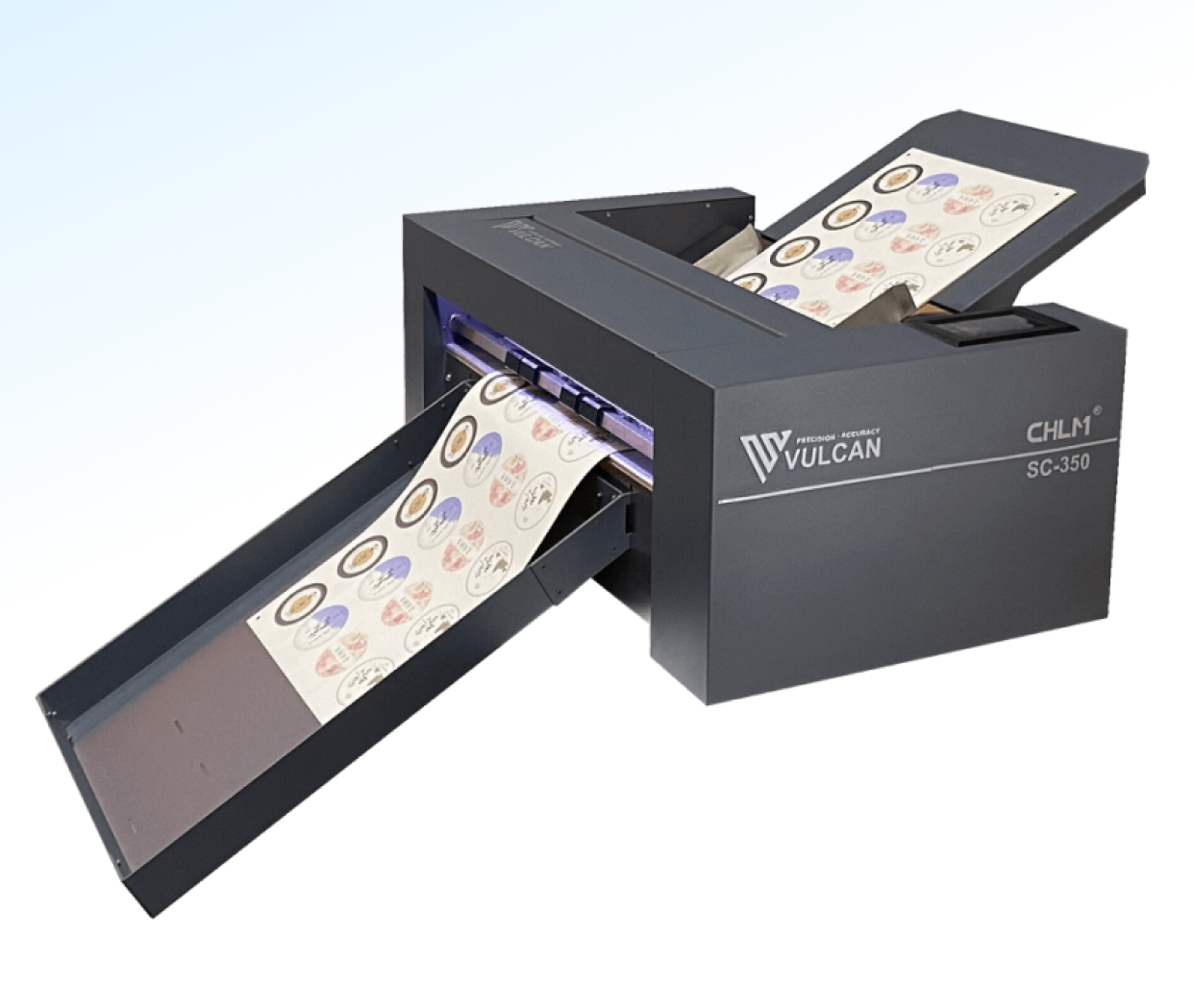

The Vulcan SC-350 Sheet cutting machine is ideal for light to medium production and design samples. Ideally suited for labels, hobbies, the advertising industry.
Through the professional UI design, VULCAN has developed and integrated the touch screen control panpel system, which makes the operation more convenient and user-friendly.
AUTO FEEDING SYSTEM
The unique paper feeding structure can not only adapt to more material ranges but also can install 300 sheets of A4 paper at a time.
Suitable for multiple sheets size (A4,A3,A3+),also avoid paper shifting working,guarantee better precision. Paper feeding time within 3 seconds
SPECIAL CARRIAGE
with high quality raw materials,especially aluminum cover, our carriage provide longer serving life,shorter corresponding time and better heat-release. High-efficiency working mode, only 2 seconds to feed paper and 3 seconds to scan marks. A circle with a diameter of 60mm. only need 23.5 seconds can be cut 24 pieces.
LED WORKING LIGHT
The Led light strip provides stable light circumstance, to prevent outer interuption during scaning.thus,the cutter can be used in any situation.
CAMERA SYSTEM
The SC-350 uses a high resolution camera for accurate detection of registration marks (as small as 5 mm) and can see reg marks on both colored and transparent materials. The ability to scan small reg marks saves material, thus reducing production costs. The ability to scan four reg marks within less than 3 seconds saves production time and reduces costs even further.
QRCODE SYSTEM
SC-350 reads QR-codes on the printed media, allowing automatic matching of print and cut files.This both speeds production and eliminates any chance of mismatched files.
U DISK FUNCTION
PLT-files saved on USB thumb drives (U-disk) can be used for direct output. This means that the SC-350 can be used without being connected to a computer.
USER FRIENDLY TOUCH SCREEN
The side panels of SC-350 are easily load-on for easier maintenance .Three sensors inside for easy finding problem and maintenance
A, Stable communications over long distances
B, Control one sheet cutting cutter from multiple computers
C, Control different sheet cutting cutter from one computer
EASY ACCESS MAINTENANCE
The side panels of SC-350 are easily load-on for easier maintenance .Three sensors inside for easy finding problem and maintenance
EASY OPERATE
Supports both Windows and Mac
| Item | SC-350 |
| Configuration | Automatic feeding sheet cutter |
| Maximum cutting speed | 1200 mm/s (10 to 1200 mm/s ) |
| Max force | 400g |
| Minimum character size | Approx. 5 mm square |
| Sheet weight | 350g/m² |
| Feeding time | 2 seconds |
| Machincial Resolution | 0.01254 mm |
| Standard interfaces | USB2.0 (Full Speed) / U-Flash / Ethernet |
| Command sets | HP-GL |
| Operating screen | 4.3-inch touch LCD |
| Power supply | 100 to 240 V AC, 50/60 Hz (Auto switching) |
| Power consumption | 60W |
| Operating environment | Temperature: 10 to 35 degree, Humidity: 35 to 75% RH (non-condensing) |
| External Dimensions (mm) (W × D × H) |
Exit tray : 406 x 462 x 186 mm Exit tray+Cutter+Media support tray:1109 x 747 x 594 mm |
| Weight | 33kg/36kg |
| Packing size | 870 x 550 x 580 MM / 0.28CBM |
| Warranty | 2 years |
