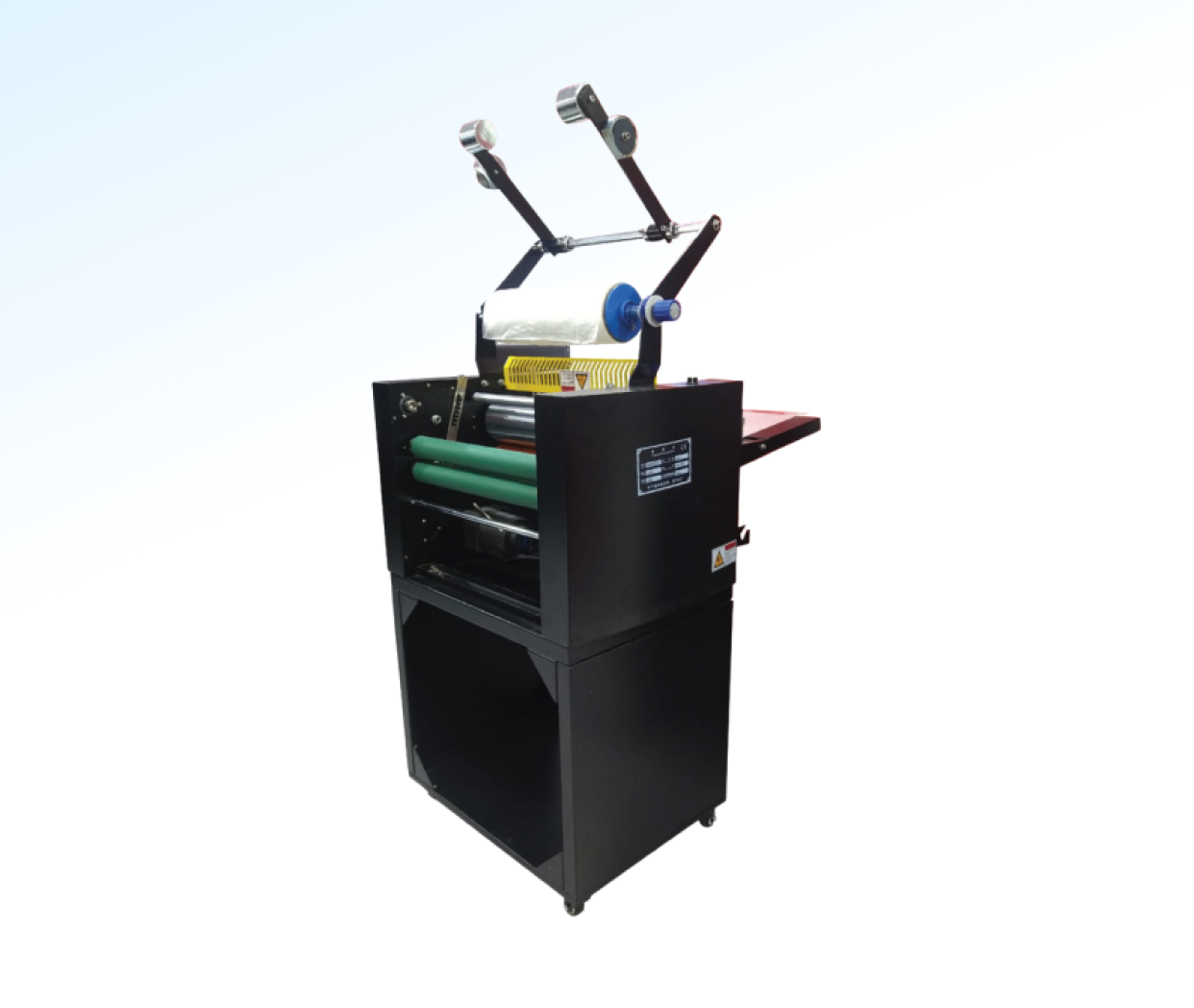

CFL-375F

Thermal Lamination Machine

CFL-375F

The CFL-375F is a digital laminator and foiler machine, capable of both thermal lamination and digital toner-based foiling.

Top Features
  • Automatic paper gap controller
  • Super-smoothly processed metal roller for high gloss lamination
  • Hot roller to avoid silvering (microbubble) High adhesion lamination.
  • Sensor in the metal roller: Fast and Precise temperature control
  • 3 inch core cylinder for perfect lamination results in dark patch jobs
  • 6 Lamp + oil heating technology in cylinder.
  • Equipped with a special decurler for no damage on both side prints.
  • Top & In-line perforator - Perfect bursting results
  • 1 & 3 inch core roll holder provision for lamination films
  • 2 in 1: laminator and foiling applications.
Technical Parameter

Model CFL-375
Max paper size 360mm
Maximum height of paper 30mm
Operating speed 0~10m/min
Laminating temperature 80~125 'c
Total power 1.8 Kw
Voltage 220V/50Hz
Dimensions(LxWxH ) 1.5×0.63×1.2m
Pressure 0.1~0.5MPa
Feeding mode Automatic
Feeding Method Friction
With slitting function with
Anti-curl function with
Rolling-up after lamianting Yes
