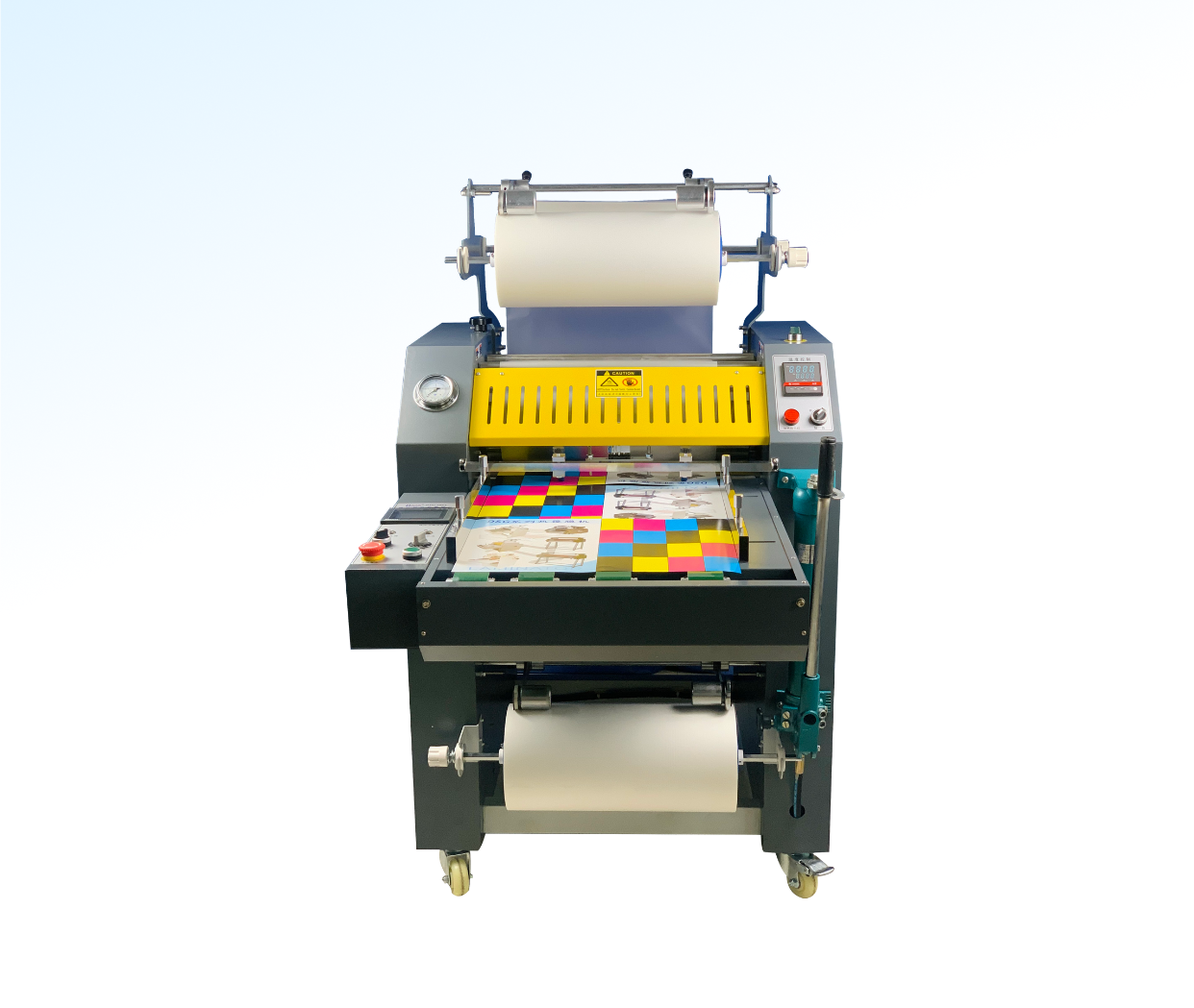

550L&720L

Thermal Lamination Machine

CFL-550L&720L

Thermal Lamination Machine

Features:

  • PLC intelligent control, touch screen display system.
  • Auto snap over lap system,So you can putpaper easily and conveniently, automaticbreaking of finished products (pneumatic breaking).
  • Single-sided anti-curling function, equipped with trimming cutter and dotted line tooth cutter.
  • Frequency conversion speed regulation function.
  • Manual hydraulic control system, shock-proof pressure display.
  • Intelligent temperature control, infrared internal heating.
  • The silicone roller is made of imported non-stick and high-temperature resistant silicone rubber.
Technical Parameter

Model 550L MFAC
Max. Laminating Width 520mm
Laminating Speed 0-15m/min
Upper Roller Diameters 200mm
Lower Roller Diameters 135mm
Max. Heating Temperature 160°C
Heating Method Infrared internal heating
Heating Power 3900w
Motor Power 400w
Power Supply AC220V,50/60Hz
Machine Weight 400/480kg
Option Double side laminating
