Lamipress 450A

Thermal Lamination press series

CFL-lamipress 450A

Thermal Lamination Press Series

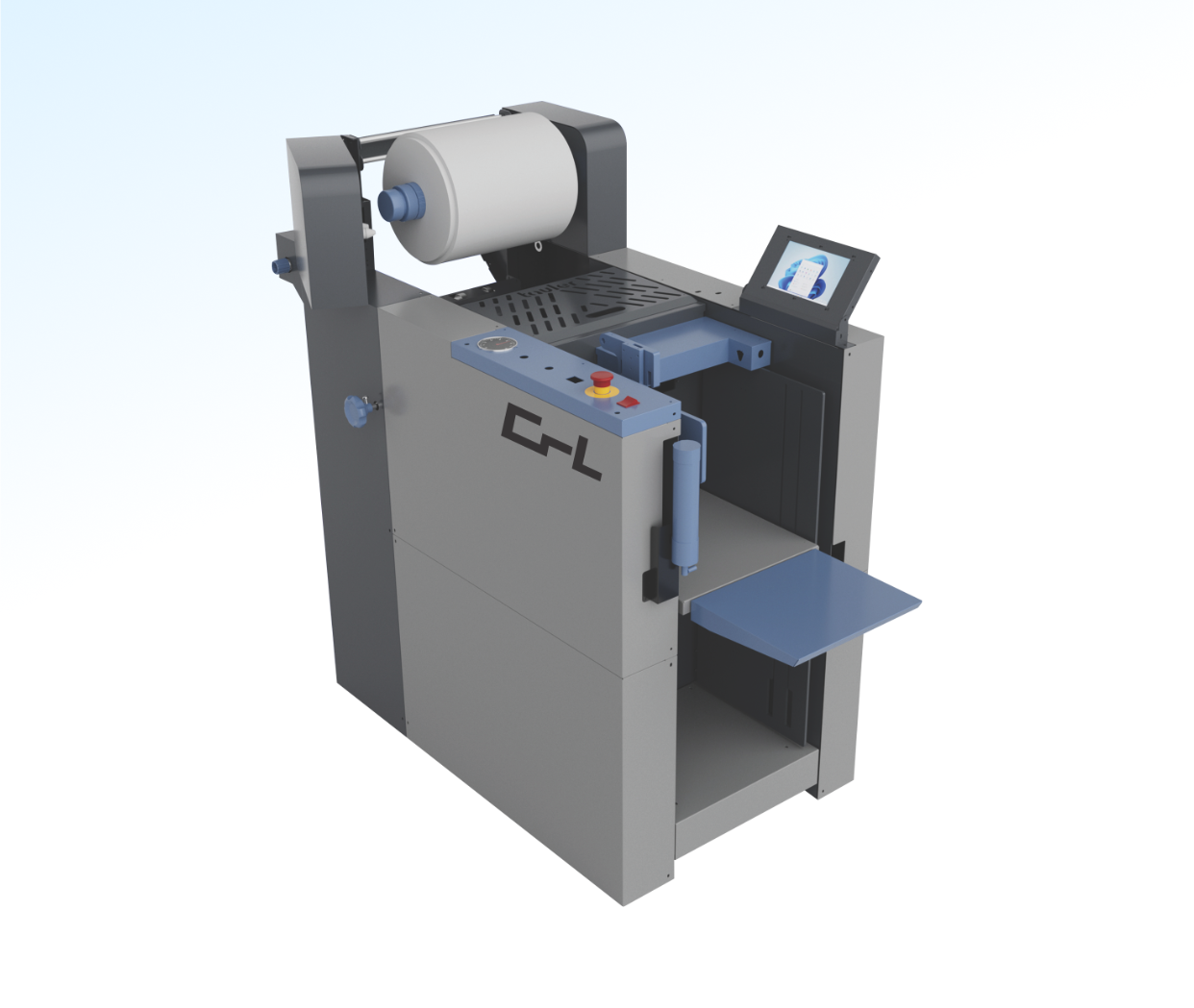

The CFL-Lamipress 450A is a fully automatic thermal lamination machine known for its efficiency and precision in paper lamination.

Features:

  • Fully automatic laminating machine, auto- matic paper feeding and automatic break- ing.
  • Thick mold spring, high laminating pres- sure, good effect.
  • Intelligent temperature control system, temperature out of control alarm system, double protection.
  • Stepless speed regulation by frequency converter, the fastest laminating speed is 5 meters/minute.
  • Single-sided anti-curling (electric button adjustment), equipped with trimming knife.
Enquiry Download Brochure
Technical Parameter

Model Lamipress 450A
Max. Feeding Paper Size 340-820mm
Min. Feeding Paper Size 150-210mm
Working Mode Hot&Cold Laminating, Foil Stamping
(optional)
Heating Method Electric Heating Tube
Max. Film Installation Diameter 270mm
Film Core 3inch
Laminating Temperature 70-120inch c
Laminating Speed 6m/min & 12m/min
Heating Steel Roller Diameter 105mm
Heating Rubber Roller Diameter 90mm
Paper Weight Range 157-400 gsm
Operation panel 7inch Touch Screen
Paper feeding Mode Automatic Suction Belt Paper Feeding
Max.Paper Loading Of Feeding System Loading Plate Height 450mm
(2500sheets Of 200gsm Paper)
Paper Breaking Mode Automatic Paper Breaking
Paper Collecting Mode Automatic Paper Collecting
Pressure Mode Hydraulic
Film Perforating And Cutting Clade With
Anti -Curl Function With Electric Anti-Curl
Machine Power 200W
