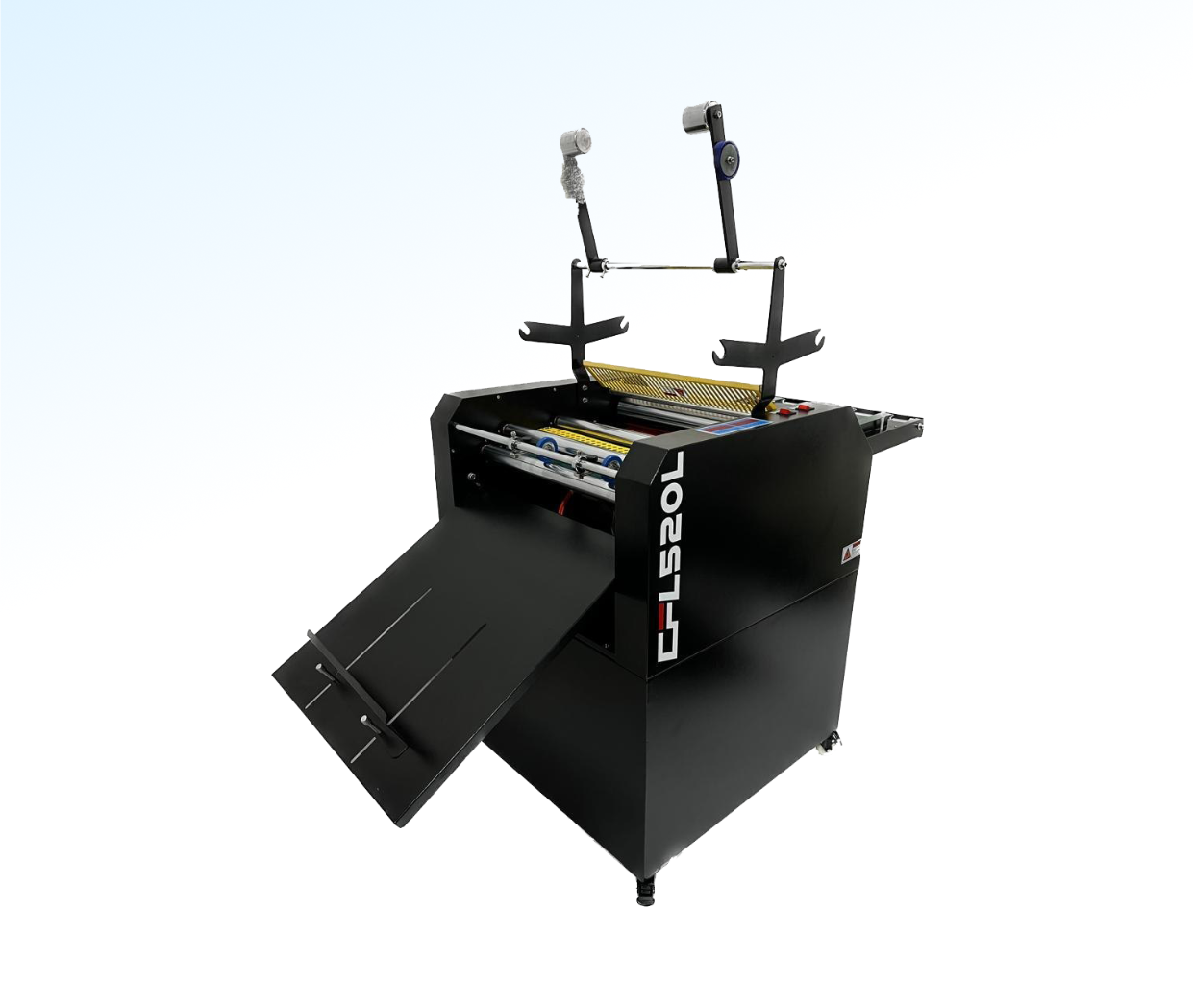

/CFL 390L_520L thermal lamination machine.png)
The Main Machine Parameters:
150x150mm Min paper size 370 x 570mm | 485 x 570mm Max paper size 125-350gsm Paper thickness 0-13m/min Operating Speed| Model | CFL 390L | CFL 520L |
| Min paper size | 150x150mm |
| Max paper size | 370 x 570mm | 485 x 570mm |
| Paper thickness | 170-350gsm |
| Lamination lm Roll capacity | 3000 mtr. (30 Kg) |
| Operating Speed | 0-10m/min |
| Per day capacity | 5000 sheets (12 x 18) |
| Heating System | Oil Heating Technology |
| Heating Temperature power | 50-120 c |
| Total Power | 2kw |
| Air Compressor Presure | 0.1-0.5MPa |
| Voltage | 220V/50Hz |
| Feeding Mode | Mannual Feed With Auto cut |
| With overlap | Yes |
| With Slitting function | Yes |
| Anti-Curl function | Yes |
| Paper receiving tray | Yes |
| Automatic disconnecting after laminating | Yes |
| Dimensions (LxWxH) | 1.6 x 0.8 x 1.2mm | 1.6 x 0.68 x 1.1mm |
| Weight | 140 Kg |
